Well Designer
General information
Project Name
Project Location
Well Identification
Designed By
Total depth of well
ft
Depth to Static Water Level
ft
Design Well Yield
gal/min
Screen Slot Size
in
Use Filter Pack?
Yes
No
Determine Slot Size
Open Sieve Analysis Tool
Well Type
Single Casing
Telescopic Completion

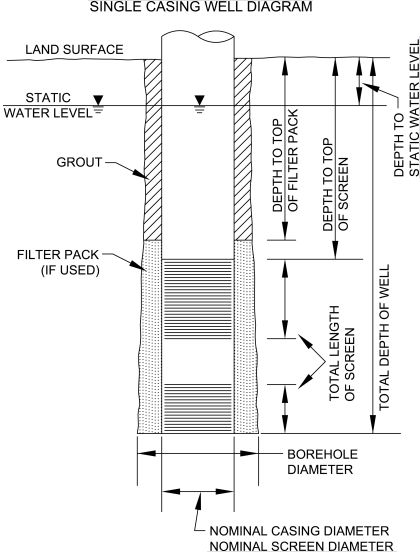

Single Casing Options
Borehole Diameter
in
Casing Material
Low Carbon Steel
PVC
Stainless Steel
Casing Schedule
Nominal Casing Diameter
6
8
10
12
14
16
18
20
24
26
30
36
Casing Wall Thickness
in
Screen Material
Stainless Steel
Low Carbon Steel
Screen Nominal Diameter
6
8
10
12
14
16
18
20
24
Depth to Top of Screen
ft
Depth to Top of Filter Pack
ft
Screen Length
ft

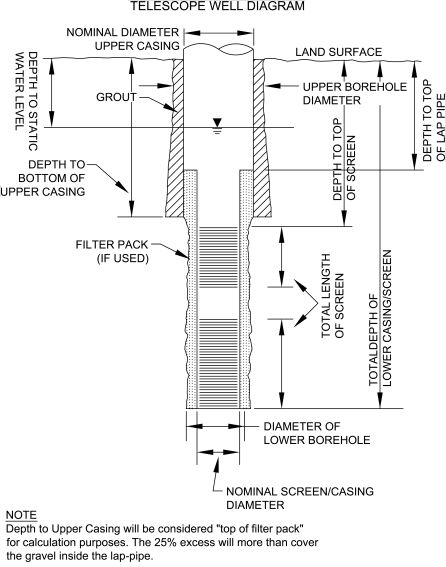

Telescopic Completion Options
Upper Borehole Diameter
in
Upper Casing Material
Low Carbon Steel
PVC
Stainless Steel
Upper Casing Schedule
Upper Nominal Casing Diameter
6
8
10
12
14
16
18
20
24
26
30
36
Upper Casing Wall Thickness
in
Lower Borehole Diameter
in
Lower Casing Material
Low Carbon Steel
PVC
Stainless Steel
Lower Casing Schedule
Lower Nominal Casing Diameter
6
8
10
12
14
16
18
20
24
26
30
36
Lower Casing Wall Thickness
in
Screen Material
Stainless Steel
Low Carbon Steel
Screen Nominal Diameter
6
8
10
12
14
16
18
20
24
Depth to Bottom of Upper Casing
ft
Depth to Top of Screen
ft
Depth to Top of Filter Pack
ft
Depth to Top of Lap Pipe
ft
Screen Length
ft
Output Options
Well Screen Technical Data Sheet
Generate
Well Screen Specifications
Generate
General Well Data Summary Sheet
Generate
